Trading Information(75-100W RF Linear Power Amplifier 900-980MHz 50dB Gain 27VDC)
Product Description(75-100W RF Linear Power Amplifier 900-980MHz 50dB Gain 27VDC)

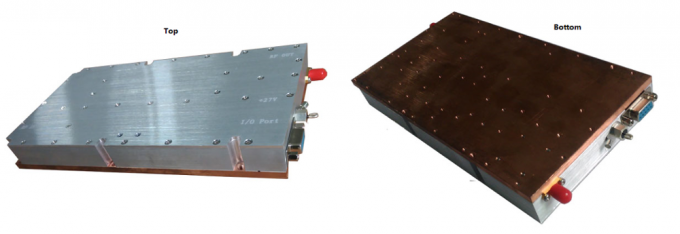

Long Range 75-100W RF Linear Power Amplifier 900-980MHz 48.5dBm-50dBi PA DC 27V with SMA-Female Input&Output Ports
Product Overview
Professional RF linear power amplifier with high gain and output power for long-range applications in the 900-980MHz frequency range.
Key Specifications
| Parameter | Value |
| Model Number | KP-RFPA900 |
| Frequency Range | 900-980MHz (customizable) |
| Gain | 50dBi |
| Max RF Output Power | 50dBm /100W |
| Working Voltage | 27VDC (27V-28V) |
| Working Current | 10A |
| RF Connectors | SMA-Female |
| Dimensions | 210*110*25mm |
| Weight | 2kg |
Detailed Technical Specifications
| No. | Item | Specification |
| 1 | Frequency Range GSM | 900-980MHz (Customized) |
| 2 | Gain | 50dB |
| 3 | Max RF Output Power | 48.5dBm-50dBm |
| 4 | Input Range | ≤10dBm |
| 5 | Gain Adjust Range | 31dB |
| 6 | Gain Adjust Step | 1dB |
| 7 | In-Band Ripple | 2dB |
| 8 | Input/Output VSWR | Less 1.5 |
| 9 | Working Voltage | 27VDC |
| 10 | Working Current | 75W: 8A
100W: 9.1A |
| 11 | RF Input/Output Ports | SMA-Female |
Optional Features
- Shut-down over High VSWR
- Shut-down over High temperature
- Auto-restart after 30 seconds against shut-down
- DB9 Male connector with RS485 interface (includes free PC software)
- DB15 Female connector with various control and monitoring functions
Product Dimention(75-100W RF Linear Power Amplifier 900-980MHz 50dB Gain 27VDC)
Manufacturing Information
Brand Name: Kimpok Technology
Place of Origin: Shenzhen, China
Certification: CE Certification
Port: Hong Kong/Shenzhen
Ordering Information
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging: International standard packing
Delivery Time: 3-7 work days
Payment Terms: T/T, PayPal, Alipay
Supply Ability: 5000/month
