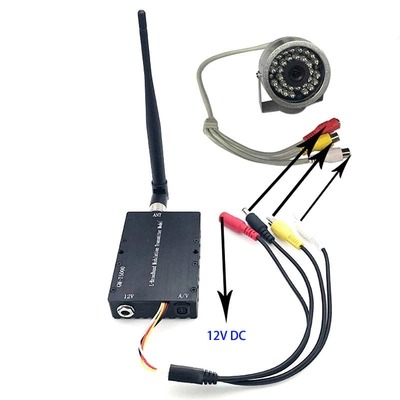

1.2GHz FPV Video Transmitter 5000mW 4 Channels 12V DC

Name: 12GHz FPV Video Transmitter 5000mW 4 Channels 12V DC
Brand: Kimpok
Price: 69.97 USD

Buy cheap 1.2GHz FPV Video Transmitter 5000mW 4 Channels 12V DC product

Brand Name : Kimpok

Model Number : GM-T5000

Certification : CE certificate

Place of Origin : Shenzhen, China

MOQ : 1

Price : $69.97/sets 2-9 sets

Payment Terms : L/C,T/T,Paypal

Supply Ability : 5000pcs/month

Delivery Time : 3-7 working days

Packaging Details : International Standard Packing

Contact Now

Private Mold 1.2Ghz FPV Wireless Video Transmitter and Receiver Lightweight with 4 Channels

Product Overview

The GM-T5000 wireless video transmission equipment delivers excellent performance with large power margin, making it suitable for complex physical environments.

Key Features

1.2GHz FPV video transmitter and receiver system
Wireless transmission eliminates need for communication cables
Simultaneous image and audio sync transmission
Compact size (200g) with easy installation
FM mode provides strong anti-interference capability
Highly integrated, stable and reliable transmission
DC power supply for convenient operation
Equipped with cooling fan for long-duration use

Technical Specifications

Specification	Details
Model Number	GM-T5000
Voltage	DC 12V
Current	700mA
Frequency	1.2Ghz (1080MHz, 1120MHz, 1160MHz, 1200MHz)
Channels	4 channels
Transmit Power	5000mW
Video Output	1 Vp-p (FM)
Audio Output	1 Vp-p (FM)
Operating Temperature	-10℃ ~ +50℃
Weight	200g
Dimensions	95 x 50 x 20mm

Performance Details

Using 0dB antenna in open areas ensures transmission of 3-5km. With high gain directional antenna, range increases to 8km line-of-sight (10km air-to-ground). Special metal construction enhances heat dissipation for prolonged operation. Compatible with all standard AV interfaces including cameras, VCD, and DVD players.

Applications

Professional wireless CCTV transmitter/receiver for security projects, FPV systems, UAVs, RC aircraft, and unmanned equipment requiring simultaneous video and data transmission.

Certification & Origin

Brand: Kimpok Technology

Certification: CE Certified

Origin: China

Private Mold: Yes

Ordering Information

Minimum Order: 2 sets

Price: $69.27/set (2-9 sets)

Delivery Time: 3-7 work days
